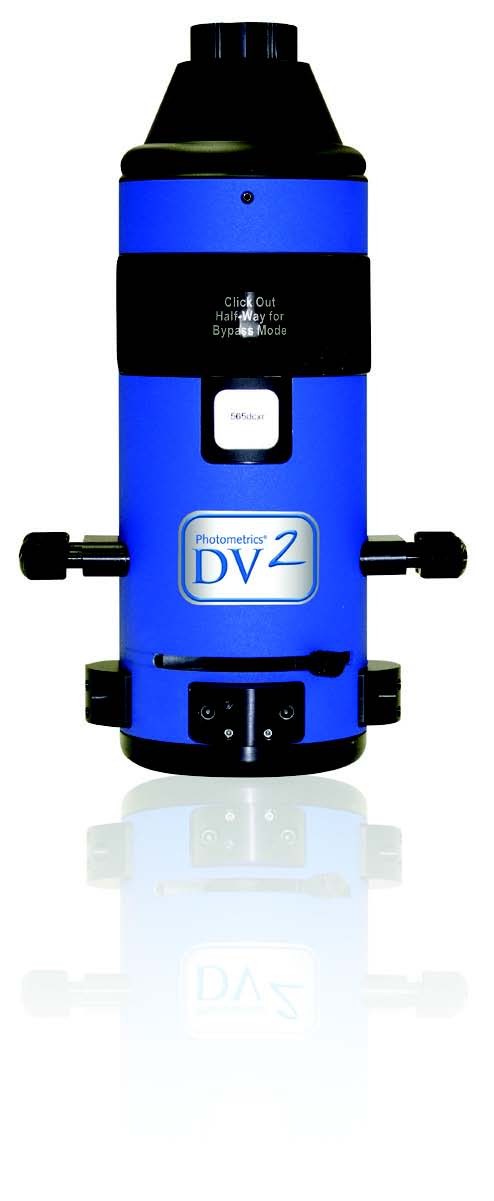

| DV2 Specifications |
| Wavelength
sensitivity | 400 to 750nm |
| Efficiency per Image | 88 to 92% |
| Operation
Temperature | 10 to 37°C |
| Detector attachement | C - mount ( male ) |
| Front attachement | C - mount ( female ) |
| External mounting
option | ¼ - 20 tapped hole on back of unit |
| Dimension | 6.5" at widest point x 8.5" height |
| Weight | 4.8lbs |
| Filters | Emission / barrier , neutral density, pollarization
; 1" ( 25.4-mm ) |
| max diameter ; 0.39" ( 9.9 - mm ) max thickness |
| Patents | USA : 5,926,283
and 5,982,497 ; Australia :
731,476; Canada : 2,294,840 ; Other
foreign patents pending |
